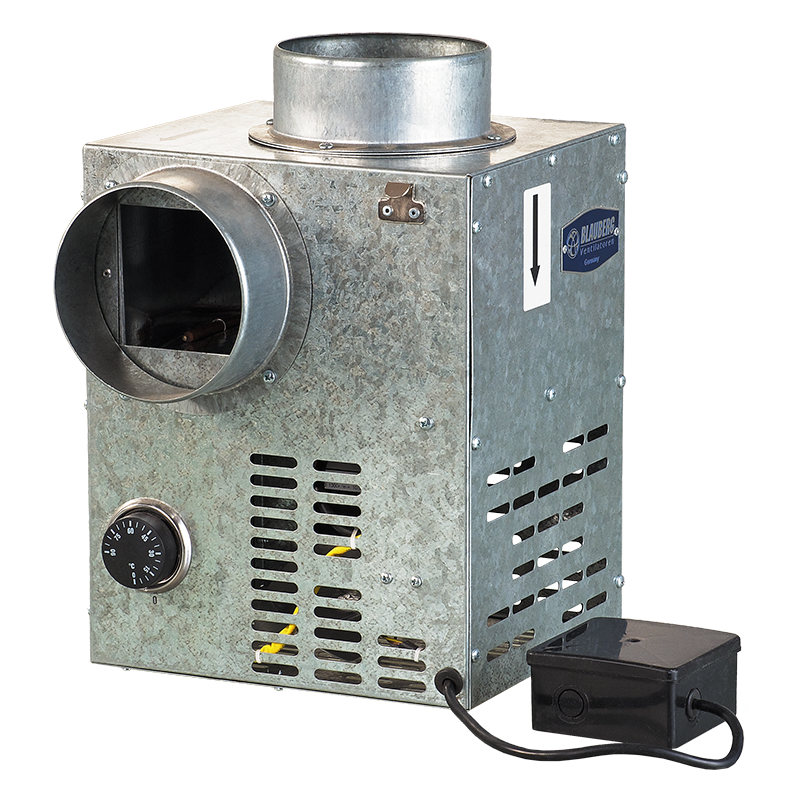

/ Product catalogue / Commercial and industrial ventilation / Chimney fans / Chimney fans / Kamin / Kamin 160 AF
| Unit of measurement | Kamin 160 AF | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50 |
| Maximum airflow | m³/h | 540 |
| Weight | kg | 8.7 |
| Transported air temperature (max) | °С | 150 |
| Ingress protection rating | - | IPX2 |
| Impeller material | - | Galvanized steel |
| ∅ D | B | H | H1 | L | P |
|---|---|---|---|---|---|
| 159 | 285 | 540 | 490 | 300 | 50 |
